FTS .PWX Current Sensor Linear Power Supply
The FTS.PWX current sensor linear power supply is designed for use with high-precision current sensors.
|
Features |
application |
Advantages |
standard |
|
l Low noise, low ripple, and no high-frequency noise interference. l Low pressure drop design l Excellent output step characteristics l Input/output isolation l It has comprehensive protection functions. |
l High-precision current sensor l Verification and Calibration Equipment |
l AC220V power supply l Inputs and outputs can be customized according to customer requirements. l Applied to various high-sensitivity, high-stability, and high-reliability sensor signal detection systems |
l IEC 61010-1 l IEC 61000-6-2:2016 l IEC 61000-6-3:2006 l IEC 61010-2-030:2017 l IEC 60112 |
Environmental and mechanical properties
|
project |
parameter |
|
Ambient operating temperature / T A |
-40℃ to 90℃ |
|
Storage ambient temperature / T S |
-40℃ to 90℃ |
|
Relative humidity /RH |
20%RH to 80%RH |
|
mechanical shock protection level |
IP54 |
Insulation properties
|
project |
Test conditions |
parameter |
|
Isolation voltage / V d |
50Hz, 1min |
5kV |
|
Transient isolation withstand voltage / V w |
50us |
10kV |
|
Creepage distance / d Cp |
|
11mm |
|
Electrical clearance distance / d Ci |
|
11mm |
|
Compared to the tracking index / CTI |
IEC-60112 |
600V |
Electrical parameters
|
project |
parameter |
|
nominal input voltage |
AC220V |
|
Typical output voltage |
± 15V / ±24V (optional) |
|
Output power |
60W/96W (optional) |
|
efficiency |
60% (typical value) |
|
Output voltage accuracy |
+1% or ±100mV (take the maximum absolute value) |
|
Output ripple voltage |
Peak- to-peak value Vp -p: ≤0.1% or 10mV (take the maximum value) RMS value Vrms: 1mV |
|
Voltage regulation |
≤0.5% or 50mV (take the maximum value) |
|
Current regulation |
≤1% or 100mV (take the maximum value) |
|
Overvoltage protection |
Protection point: 125%~145% Protection method: Shutdown |
|
Overcurrent protectio |
Protection points: 105 ~ 150% Protection methods: Current limiting/inspection/interception |

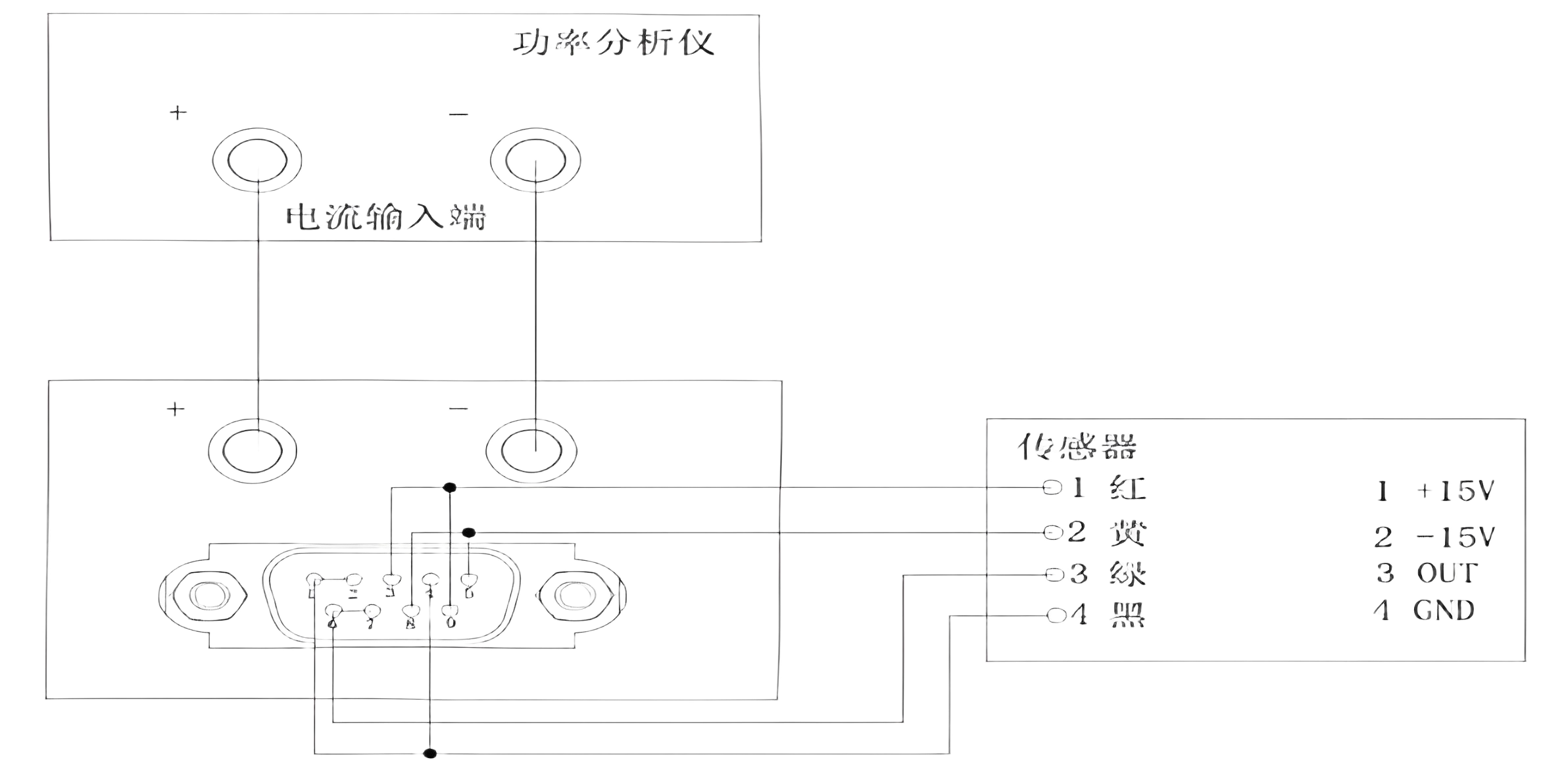

Electrical wiring diagram

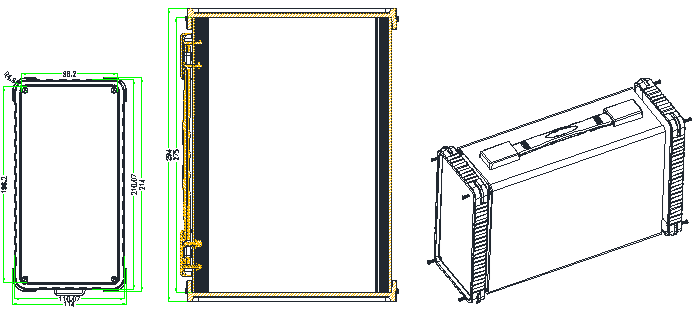

External dimensions and specifications
